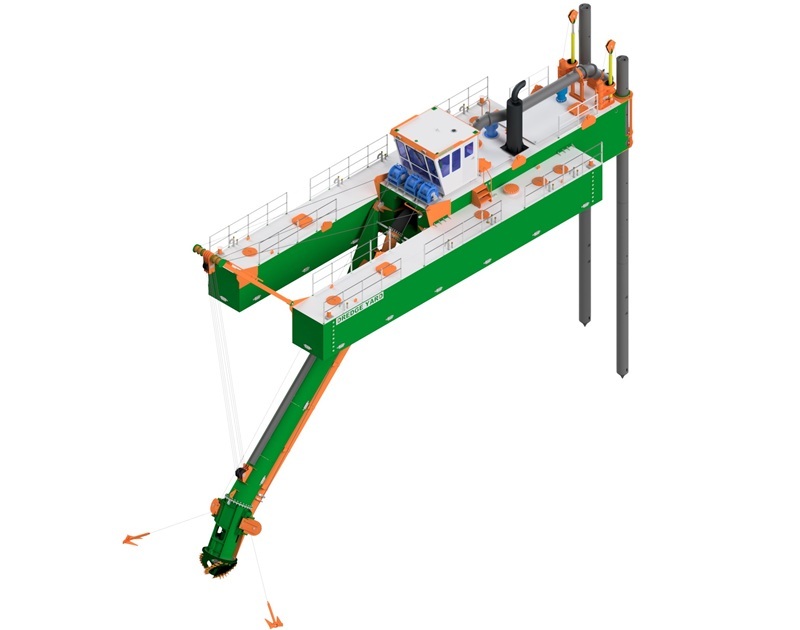

Cutter Suction Dredger 450

Compact power for diverse applications

The CSD 450 combines compact dimensions with capabilities perfect for projects with space constraints or moderate production requirements. The 3-pontoon dismountable design ensures easy transport.

Dismountable dredger with 3 pontoons
Container transportable design
High production capacity of 3,500 m³/hr
Quick mobilization and assembly

Included:

Deck crane

Optional:

Swivel bend Anchor booms

Build it yourself

3,500 m³/h

Production

12 m

Dredging Depth

1,056 kW

Total Power

450 mm

Pipe Diameter

125 kW

Cutter Power

Technical Specifications

Dredge Performance

Suction Pipe Diameter 500 mm

Discharge Pipe Diameter 450 mm

Max. Mixture Production 3,500 m³/h

In-Situ Production 900 m³/h

Dredging Depth 12 m

Equipment

Main Engine Power 1,040 kW

Engine Speed 1,650 RPM

Generator Power 20 kVA

Cutter Power 125 kW

Cutter Speed 0-35 RPM

Cutter Diameter 1,510 mm

Dimensions

Length Overall 31.0 m

Number of Pontoons 3 dismountable

Length Over Pontoons 21.5 m

Width Overall 7.1 m

Depth Main Pontoon 2.45 m

Depth Side Pontoon 1.8 m

Design Draught 1.2 m

Spud Carriage System

Swing Pull Force 80 kN

Swing Range at Min Depth 34.6 m

Swing Range at Max Depth 29.2 m

Spuds Length 17.0 m

Spud Diameter 508 mm

Spud Cylinder Capacity 150 kN x 1.5 m

Build Your Own Dredger

We handle all the complex multidisciplinary engineering — fully assembled and factory tested. You build the steel hull at your local yard and fit everything together with our supervision. Standard welding, major savings.

Dredge Yard supply parts — complete skid assembly with pump, hydraulics, control panel and cutter components

STEP 1

We Deliver — Complete Machinery Package

We handle everything that requires complex multidisciplinary engineering — pump drive, hydraulics, cutter mechanics, automation — fully assembled and factory-tested as one complete skid arrangement.

Dredge pump, drive train, spud hoisting system & complete hydraulic system with piping
Cutter unit, turning points, winch skid & gantry sheave blocks
Control panel, electrical systems & automation
Fully assembled, factory tested & container transportable

STEP 2

You Build — Steel Structures

Using our detailed engineering drawings, your local shipyard builds the hull and structural steelwork. This is all standard plate construction and welding — no specialized dredger expertise needed.

Pontoon hulls — standard steel plate welding
Cutter ladder, A-frame & suction pipe structures
Complete engineering drawings & material list provided
Build locally — significantly reduce labour & logistics costs

Pontoon hull internal framework — stiffeners and structural steelwork by shipyard

Completed pontoon hull exterior — standard steel plate construction

Skid assembly being placed into pontoon hull

Main pontoon sub-assembly — Dredge Yard components connecting to hull

Deck components assembled on main pontoon

Cutter unit, turning points and gantry sheave blocks — assembled by Dredge Yard

Complete assembled CSD 500 dredger — all systems connected

STEP 3

Assemble — Connect & Launch

With our engineers on site for supervision, your team fits the machinery into the hull, routes the wiring, and connects all systems. Then it's time to launch.

Place skid into pontoons & weld into position
Route wiring through hull & cutter ladder
Connect all systems — Dredge Yard supervision on site
Commission, test & launch your dredger

Ready to build your CSD 450?

Get in touch with our team. We'll provide engineering drawings, a complete parts list, and guide you through every step of the build process.

Get Your Build Pack

Features

Compact design
Easy transport
Versatile applications
Container transportable

Applications

Canal maintenance
Lake dredging
Environmental projects
Port maintenance

Get the Complete Brochure

Download the full technical specifications for the Cutter Suction Dredger 450.
