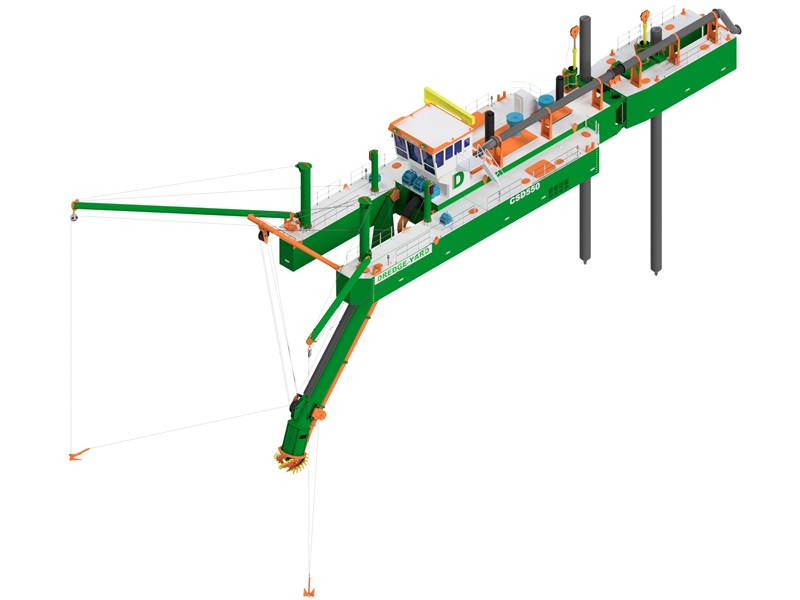

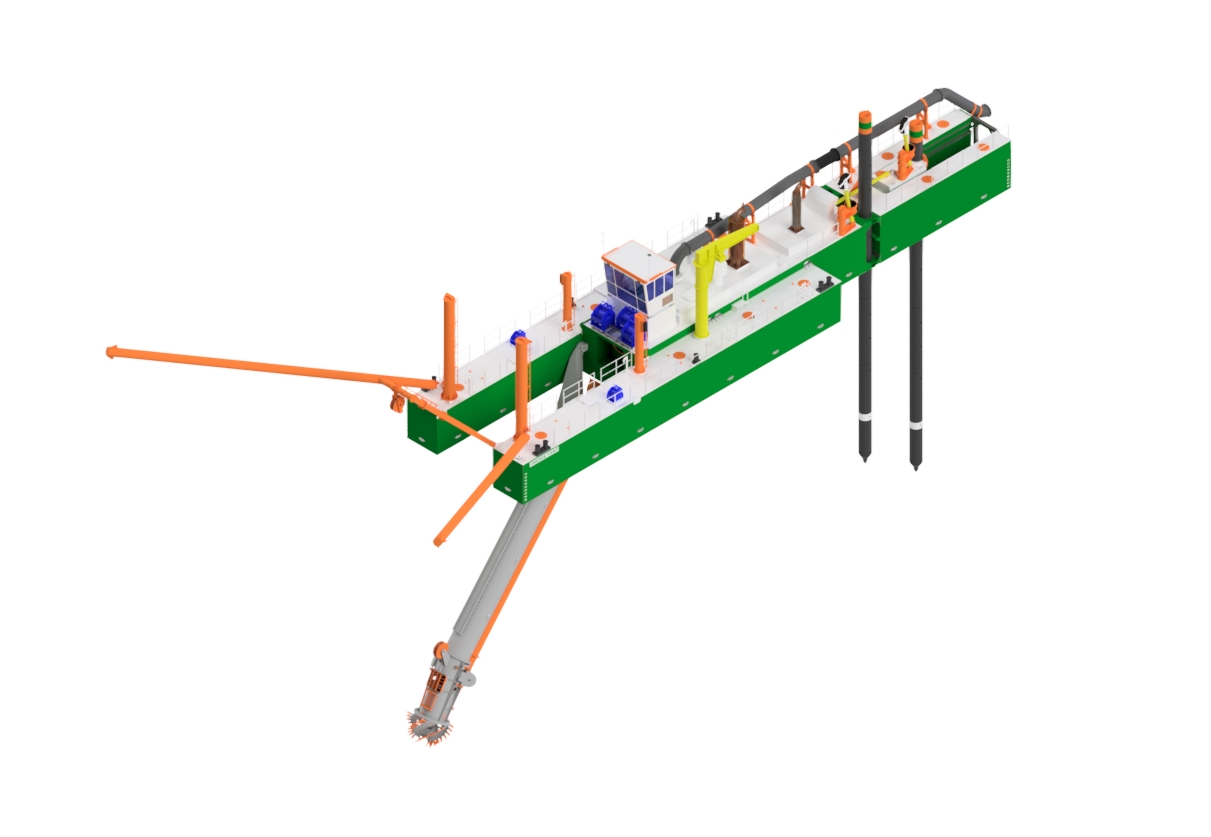

Cutter Suction Dredger 550

Robust mid-large dredger for demanding projects

The CSD 550 is a robust mid-large cutter suction dredger with a 550mm discharge pipe and 330kW cutter system. Engineered for demanding port, river, and reclamation projects, it combines high production capacity with a dismountable 6-pontoon design for practical transport and assembly.

Dismountable dredger with 6 pontoons
Container transportable design
High production capacity of 5,200 m³/hr
Powerful cutter unit and wear resistant dredge pump

Included:

Anchor booms Deck crane Spud carriage system

Optional:

Swivel bend

Build it yourself

5,200 m³/h

Production

16 m

Dredging Depth

2,013 kW

Total Power

550 mm

Pipe Diameter

330 kW

Cutter Power

Technical Specifications

Dredge Performance

Suction Pipe Diameter 600 mm

Discharge Pipe Diameter 550 mm

Max. Mixture Production 5,200 m³/h

In-Situ Production 1,300 m³/h

Dredging Depth 16 m

Equipment

Main Engine Power 1,380 kW

Main Engine Speed 1,650 RPM

Auxiliary Engine Power 605 kW

Auxiliary Engine Speed 1,800 RPM

Generator Power 35 kVA

Cutter Power 330 kW

Cutter Speed 0-35 RPM

Cutter Diameter 1,800 mm

Dimensions

Length Overall 49.5 m

Number of Pontoons 6 dismountable

Length Over Pontoons 36.5 m

Width Overall 8.4 m

Depth Main Pontoon 3.0 m

Depth Side Pontoon 2.5 m

Design Draught 1.5 m

Spud Carriage System

Swing Pull Force 160 kN

Swing Range at Min Depth 49.8 m

Swing Range at Max Depth 41.2 m

Spud Length 21 m

Spud Diameter 711 mm

Spud Carrier Stroke 4.0 m

Build Your Own Dredger

We handle all the complex multidisciplinary engineering — fully assembled and factory tested. You build the steel hull at your local yard and fit everything together with our supervision. Standard welding, major savings.

Dredge Yard supply parts — complete skid assembly with pump, hydraulics, control panel and cutter components

STEP 1

We Deliver — Complete Machinery Package

We handle everything that requires complex multidisciplinary engineering — pump drive, hydraulics, cutter mechanics, automation — fully assembled and factory-tested as one complete skid arrangement.

Dredge pump, drive train, spud hoisting system & complete hydraulic system with piping
Cutter unit, turning points, winch skid & gantry sheave blocks
Control panel, electrical systems & automation
Fully assembled, factory tested & container transportable

STEP 2

You Build — Steel Structures

Using our detailed engineering drawings, your local shipyard builds the hull and structural steelwork. This is all standard plate construction and welding — no specialized dredger expertise needed.

Pontoon hulls — standard steel plate welding
Cutter ladder, A-frame & suction pipe structures
Complete engineering drawings & material list provided
Build locally — significantly reduce labour & logistics costs

Pontoon hull internal framework — stiffeners and structural steelwork by shipyard

Completed pontoon hull exterior — standard steel plate construction

Skid assembly being placed into pontoon hull

Main pontoon sub-assembly — Dredge Yard components connecting to hull

Deck components assembled on main pontoon

Cutter unit, turning points and gantry sheave blocks — assembled by Dredge Yard

Complete assembled CSD 550 dredger — all systems connected

STEP 3

Assemble — Connect & Launch

With our engineers on site for supervision, your team fits the machinery into the hull, routes the wiring, and connects all systems. Then it's time to launch.

Place skid into pontoons & weld into position
Route wiring through hull & cutter ladder
Connect all systems — Dredge Yard supervision on site
Commission, test & launch your dredger

Ready to build your CSD 550?

Get in touch with our team. We'll provide engineering drawings, a complete parts list, and guide you through every step of the build process.

Get Your Build Pack

Features

Container transportable
Dismountable design
Powerful cutter system
High production capacity
Robust wear-resistant dredge pump

Applications

Capital dredging
Land reclamation
Port and harbor maintenance
River and canal dredging
Sand mining
