Cutter Suction Dredger 650

Cutter Suction Dredger 650

High-capacity dredging for major projects

The CSD 650 is our flagship cutter suction dredger with a 650mm discharge pipe diameter and powerful 700kW cutter system, it excels in demanding conditions including hard clay and compacted sand.

  • Dismountable dredger for practical transport
  • Easily customised due to available options
  • Large swing width maximising operational efficiency
  • Powerful cutter unit and wear resistant dredge pump

Included:

Anchor booms Deck crane Spud carriage system

Optional:

Swivel bend
Build it yourself
7,000 m³/h
Production
18 m
Dredging Depth
3,123 kW
Total Power
650 mm
Pipe Diameter
700 kW
Cutter Power

Technical Specifications

Dredge Performance

Suction Pipe Diameter 700 mm
Discharge Pipe Diameter 650 mm
Max. Mixture Production 7,000 m³/h
In-Situ Production 1,650 m³/h
Dredging Depth 18 m

Equipment

Main Engine Power 1,885 kW
Main Engine Speed 1,500 RPM
Auxiliary Engine Power 1,210 kW
Auxiliary Engine Speed 1,800 RPM
Generator Power 35 kVA
Cutter Power 700 kW
Cutter Speed 0-35 RPM
Cutter Diameter 2,160 mm

Dimensions

Length Overall 55.9 m
Number of Pontoons 6 dismountable
Length Over Pontoons 41.6 m
Width Overall 9.5 m
Depth Main Pontoon 3.0 m
Depth Side Pontoon 2.5 m
Design Draught 1.9 m

Spud Carriage System

Swing Pull Force 240 kN
Swing Range at Min Depth 54.8 m
Swing Range at Max Depth 46.1 m
Spud Length 24 m
Spud Diameter 800 mm
Spud Carrier Stroke 4.5 m

Build Your Own Dredger

We handle all the complex multidisciplinary engineering — fully assembled and factory tested. You build the steel hull at your local yard and fit everything together with our supervision. Standard welding, major savings.

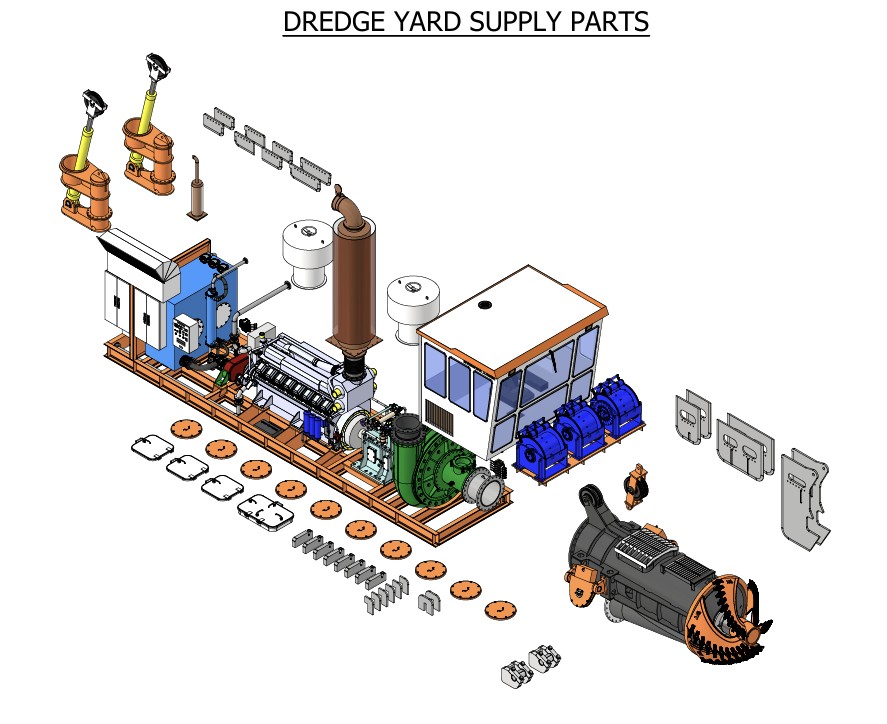

Dredge Yard supply parts — complete skid assembly with pump, hydraulics, control panel and cutter components
STEP 1

We Deliver — Complete Machinery Package

We handle everything that requires complex multidisciplinary engineering — pump drive, hydraulics, cutter mechanics, automation — fully assembled and factory-tested as one complete skid arrangement.

  • Dredge pump, drive train, spud hoisting system & complete hydraulic system with piping
  • Cutter unit, turning points, winch skid & gantry sheave blocks
  • Control panel, electrical systems & automation
  • Fully assembled, factory tested & container transportable
STEP 2

You Build — Steel Structures

Using our detailed engineering drawings, your local shipyard builds the hull and structural steelwork. This is all standard plate construction and welding — no specialized dredger expertise needed.

  • Pontoon hulls — standard steel plate welding
  • Cutter ladder, A-frame & suction pipe structures
  • Complete engineering drawings & material list provided
  • Build locally — significantly reduce labour & logistics costs

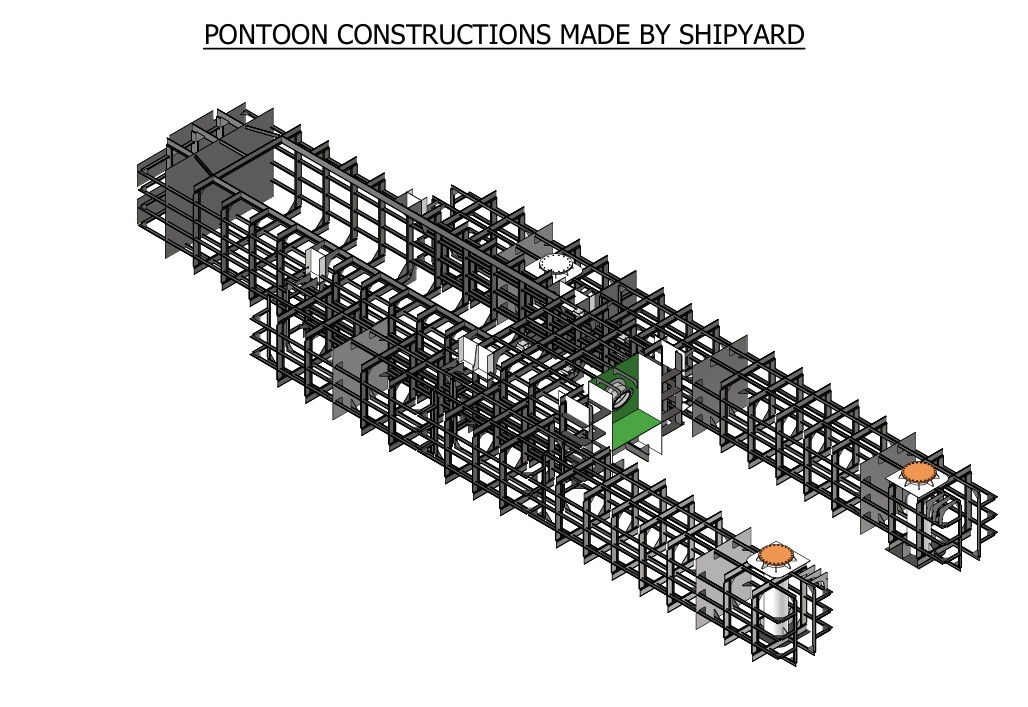

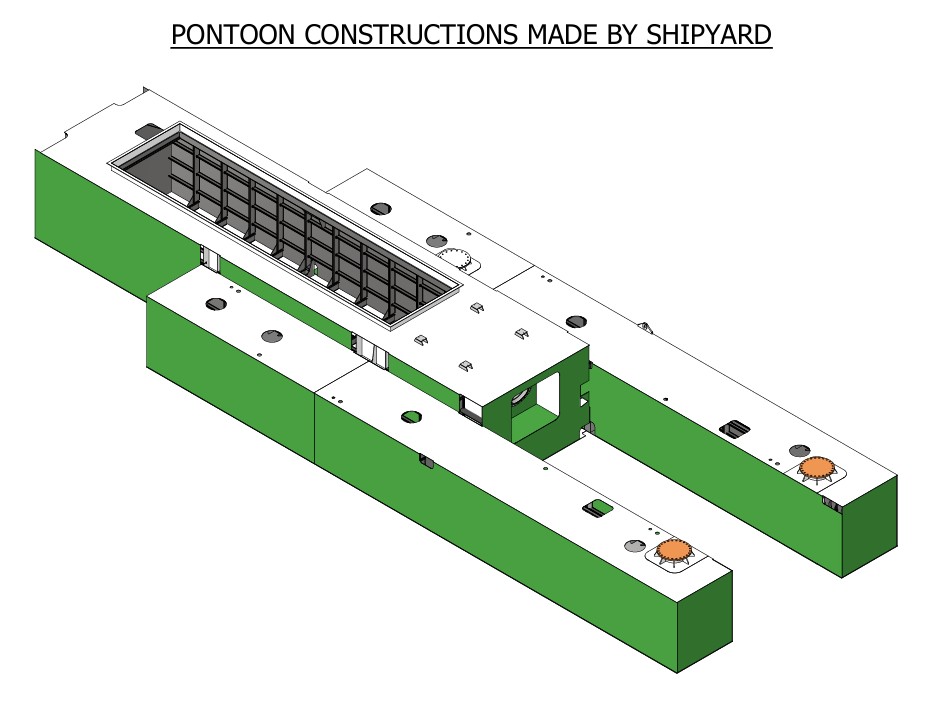

Pontoon hull internal framework — stiffeners and structural steelwork by shipyard Completed pontoon hull exterior — standard steel plate construction

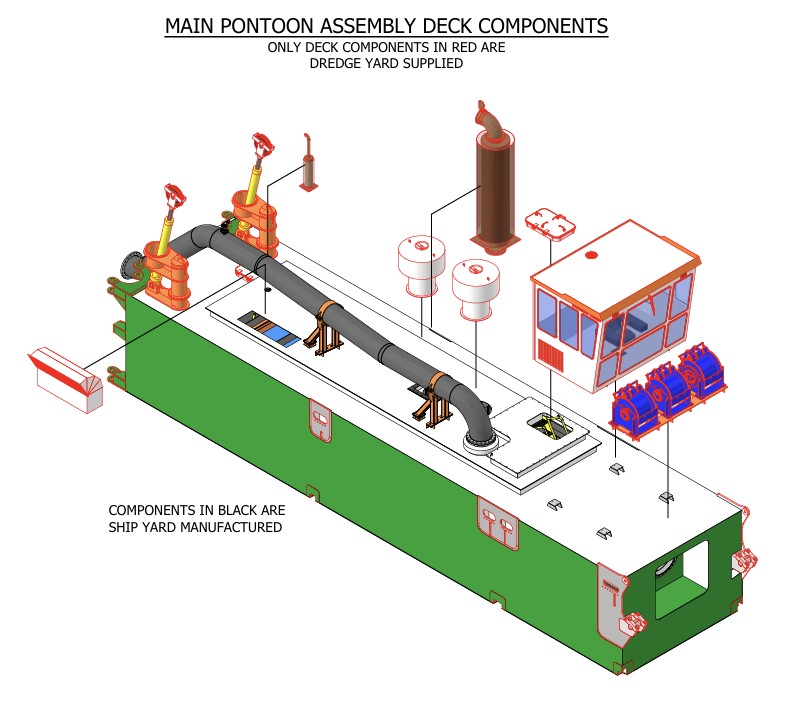

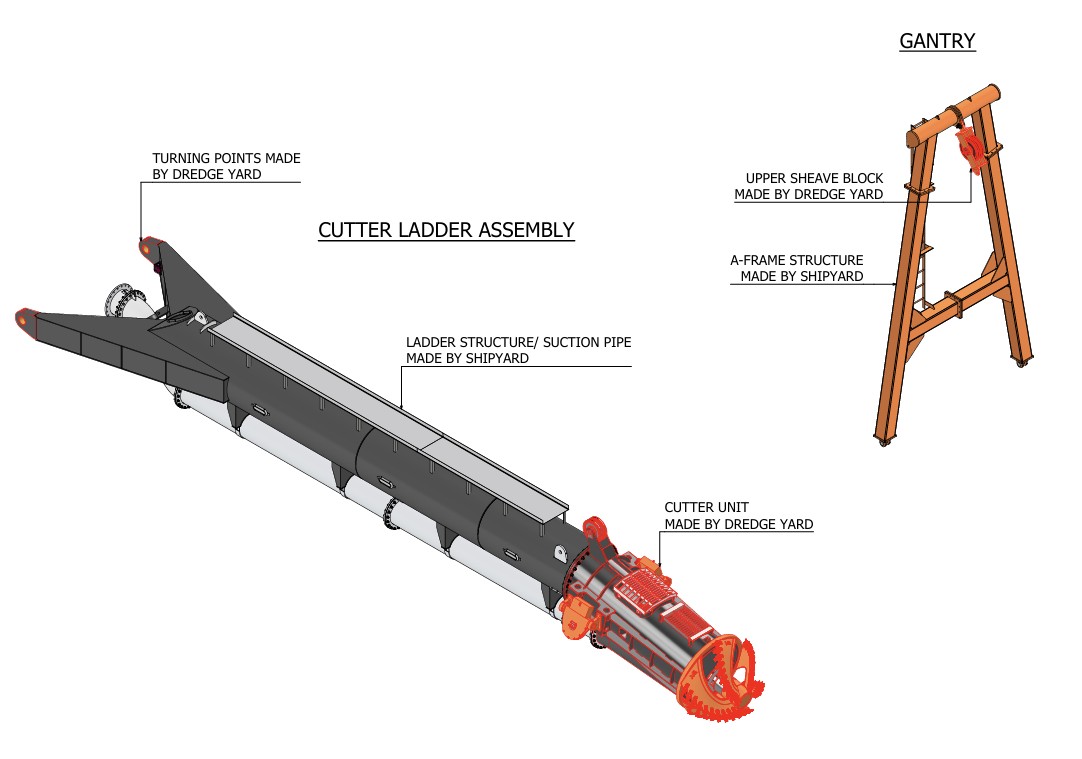

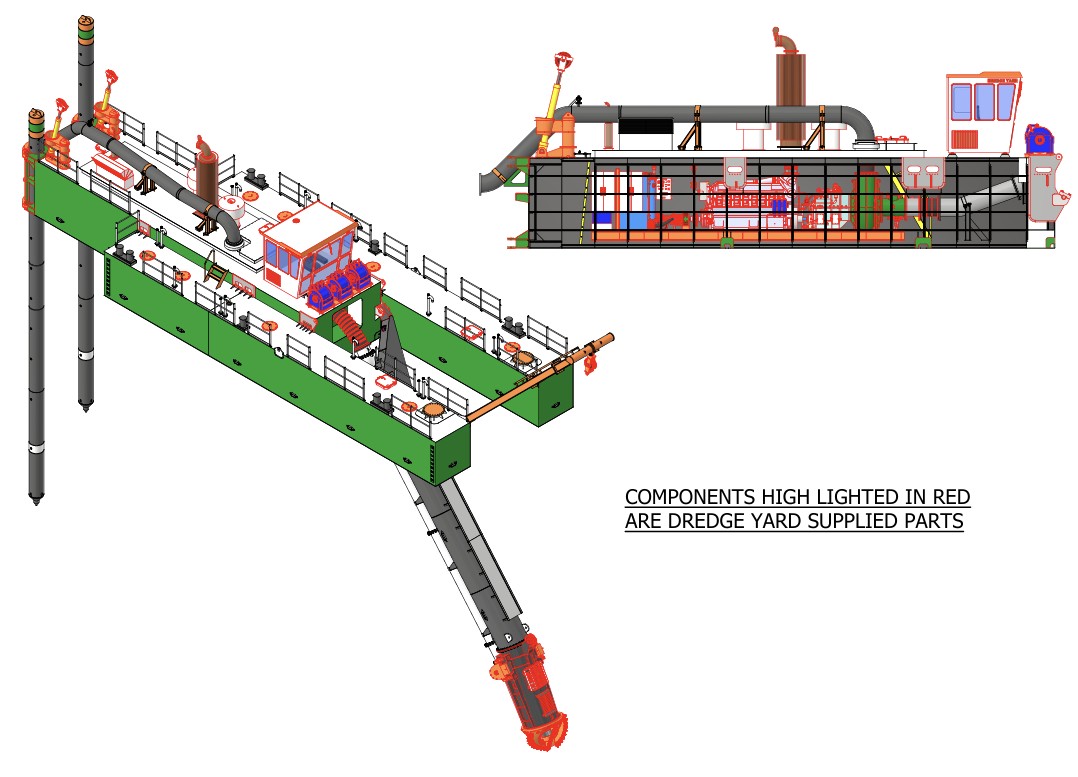

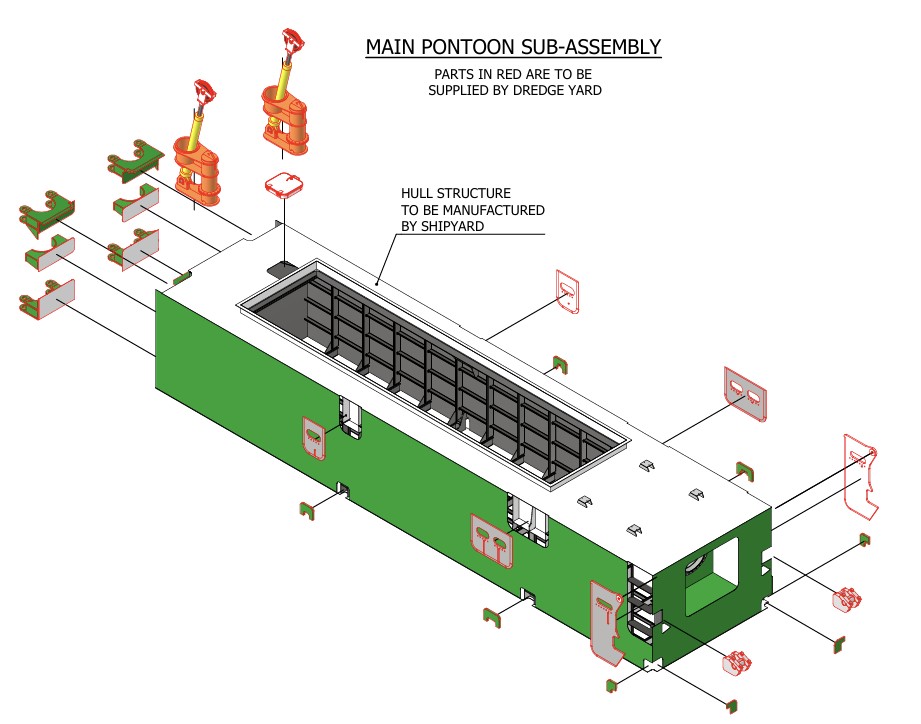

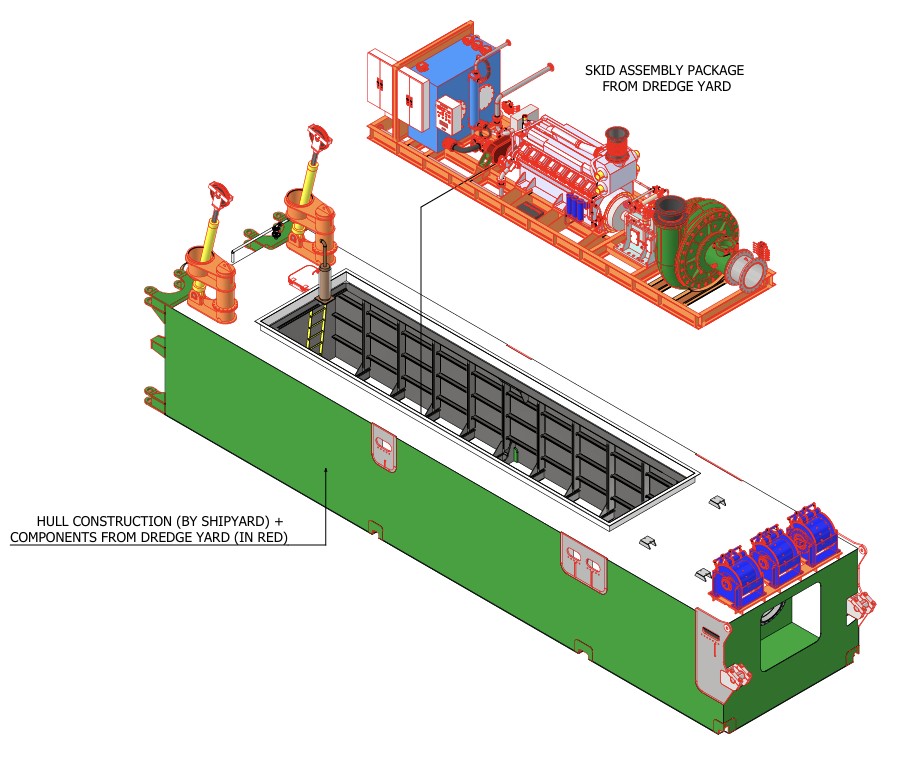

Skid assembly being placed into pontoon hull Main pontoon sub-assembly — Dredge Yard components connecting to hull Deck components assembled on main pontoon Cutter unit, turning points and gantry sheave blocks — assembled by Dredge Yard Complete assembled CSD 500 dredger — all systems connected
STEP 3

Assemble — Connect & Launch

With our engineers on site for supervision, your team fits the machinery into the hull, routes the wiring, and connects all systems. Then it's time to launch.

  • Place skid into pontoons & weld into position
  • Route wiring through hull & cutter ladder
  • Connect all systems — Dredge Yard supervision on site
  • Commission, test & launch your dredger

Ready to build your CSD 650?

Get in touch with our team. We'll provide engineering drawings, a complete parts list, and guide you through every step of the build process.

Get Your Build Pack

Features

  • Dismountable design with 6 pontoons for practical transport
  • High-efficiency wear-resistant dredge pump
  • Powerful 700kW cutter for hard soils
  • Large swing width for operational efficiency
  • Easily customisable with available options
  • Suitable for truck transport or towing

Applications

  • Capital dredging
  • Land reclamation
  • Port and harbor deepening
  • Mining operations
  • Maintenance dredging
