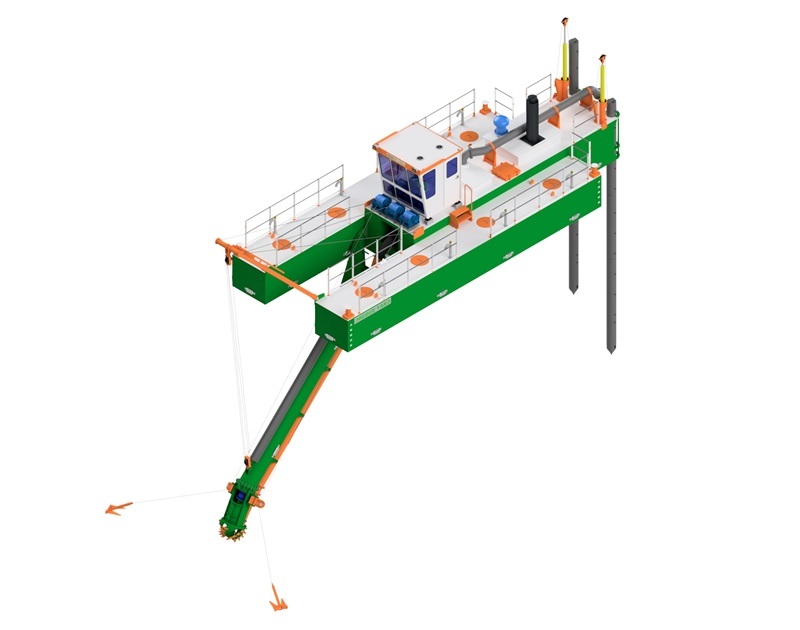

| Type of dredger | Cutter Suction Dredger | |
| Pontoons | 3 dismountable pontoons | |
| Transport | Inside 4 containers | |
| Suction pipe diameter | 250 mm | 10 inches |
| Discharge pipe diameter | 250 mm | 10 inches |
| Suitable for dredging material | Clay, medium sand, and coarse sand | |
| Dredging depth at 45 degrees | 7.0 m | 23.0 ft |
| Production | 260 m³/hr | 340 yd³/hr |
| Engine power | 261 kW | 350 hp |
| Engine speed | 1,800 – 2,100 rpm | |
| Cooling system | Boxcooler | |
| Generator | 22 kVA |
| Length overall including ladder | 20.5 m | 67.2 ft |
| Number of pontoons | 3 dismountable | |
| Length over pontoons | 13.5 m | 44.3 ft |
| Width overall during operation | 5.3 m | 17.4 ft |
| Width during transport | 2.3 m | 7.5 ft |
| Depth, main pontoon | 1.66 m | 5.4 ft |
| Depth, side pontoon | 1.25 m | 4.1 ft |
| Design draught | 0.75 m | 2.5 ft |
| Type | DY250-250 | |
| Configuration | Single-stage centrifugal pump | |
| Position | Inboard, mid-pontoon | |
| Suction diameter | 250 mm | 10 inches |
| Discharge diameter | 250 mm | 10 inches |
| Spherical passage | 125 mm | 5 inches |
| Impeller number of vanes | 3 | |
| Drive Motor power | 261 kW | 350 hp |
| Drive | Direct drive through a single-stage gearbox | |
| Pump speed | 825 – 975 rpm | |
| Wear material | Wear-resistant cast iron | |
| Gearbox | Single-stage; vertical offset | |
| Shaft seal | Mechanical seal |
| Type | DY900-C Multi-purposed | |
| Configuration | Crown-type interchangeable teeth | |
| Cutter diameter | 0.9 m | 3.0 ft |
| Cutter motor power | 35 kW | 47 hp |
| Cutter motor speed | 0 – 40 rpm | |
| Cutting system | 3 replaceable cutter teeth (narrow, pick points, chisel type) |
| Type of winch | Drum winch | |
| Movement | Swing 35 degrees to both sides | |
| Number of winches | 2 units | |
| Wire pull | 30 kN | 6,744 lbs |
| Hauling speed | 0 – 20 m/min | 0 – 66 ft/min |
| Drive | Hydraulic motor | |
| Wire diameter | 13 mm | 0.5 inches |
| Swing range at min depth | 23 m | 75.4 ft |
| Swing range at max depth | 19.3 m | 63.3 ft |
| Type of winch | Drum winch | |
| Number of winches | 1 unit | |
| Wire pull | 30 kN | 6,744 lbs |
| Hauling speed | 0 – 20 m/min | 0 – 66 ft/min |
| Drive | Hydraulic motor | |
| Wire diameter | 13 mm | 0.5 inches |
| Anchor weight | 230 kg | 507 lbs |
| Total spud length | 9.1 m | 29.8 ft |
| Outer spud diameter | 273 mm | 10.7 inches |
| Total spud weight | 1,200 kg | 2,646 lbs |
| Cylinder lifting force | 55 kN | 12,364 lbs |
| Cylinder stroke | 1.25 m | 4.1 ft |
| Fuel type | Diesel fuel | |
| Tank capacity | 3,500 liters | 925 gallons |
| Total area | 3 m² | 32.3 sq ft |
| Cooling | Ventilation fan (A/C optional) | |
| Lights | 2x exterior lights and 2x flood lights | |
| Additional | Screen wipers | |
| Instrumentations |
|
