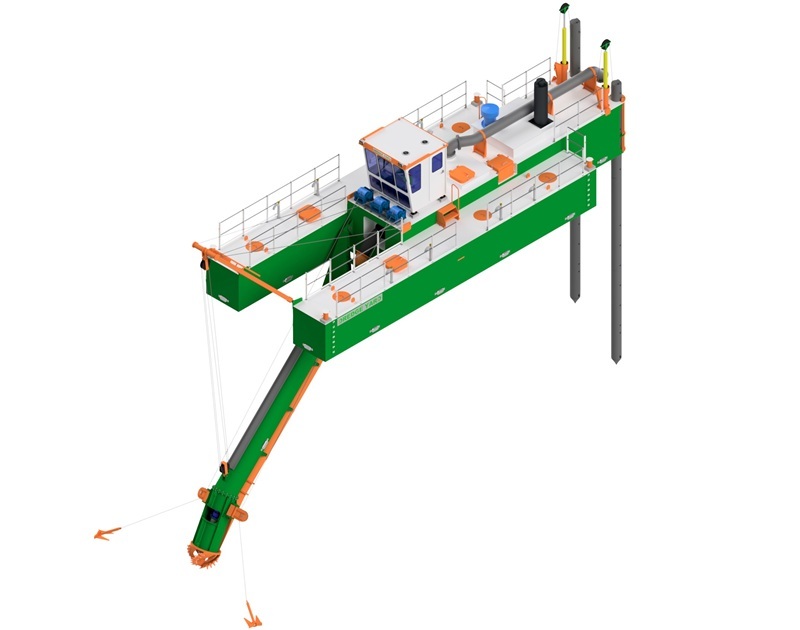

| Type of dredger | Cutter Suction Dredger | |
| Pontoons | 3 dismountable pontoons | |
| Transport | Dismountable on flat tracks | |
| Suction pipe diameter | 350 mm | 14 inches |
| Discharge pipe diameter | 350 mm | 14 inches |
| Suitable for dredging material | Clay, medium sand, and coarse sand | |
| Dredging depth at 45 degrees | 9.0 m | 29.5 ft |
| Production | 460 m³/hr | 601 yd³/hr |
| Engine power | 447 kW | 599 hp |
| Engine speed | 1,800 – 2,100 rpm | |
| Cooling system | Boxcooler | |
| Generator | 22 kVA |
| Length overall including ladder | 22.9 m | 75.1 ft |
| Number of pontoons | 3 dismountable | |
| Length over pontoons | 15.0 m | 49.2 ft |
| Width overall during operation | 5.6 m | 18.4 ft |
| Width overall during transport | 2.5 m | 8.2 ft |
| Depth, main pontoon | 2.0 m | 6.6 ft |
| Depth, side pontoon | 1.5 m | 4.9 ft |
| Design draught | 1.0 m | 3.3 ft |
| Type | DY350-300 | |
| Configuration | Single-stage centrifugal pump | |
| Position | Inboard, mid-pontoon | |
| Suction diameter | 350 mm | 14 inches |
| Discharge diameter | 300 mm | 12 inches |
| Spherical passage | 150 mm | 6 inches |
| Impeller number of vanes | 3 | |
| Drive power | 447 kW | 599 hp |
| Drive | Direct drive through a single-stage gearbox | |
| Pump speed | 600 – 800 rpm | |
| Wear material | Wear-resistant cast iron | |
| Gearbox | Single-stage, vertical offset | |
| Shaft seal | Mechanical seal |
| Type | DY1000-C Multi-purposed | |
| Configuration | Crown-type interchangeable teeth | |
| Cutter diameter | 1.0 m | 3.3 ft |
| Cutter motor power | 50 kW | 67 hp |
| Cutter motor speed | 0 – 35 rpm | |
| Cutting system | Replaceable (narrow, pick-point, chisel type) |
| Type of winch | Drum winch | |
| Movement | Swing 35 degrees to both sides | |
| Number of winches | 2 units | |
| Wire pull | 40 kN | 8,992 lbs |
| Hauling speed | 0 – 20 m/min | 0 – 66 ft/min |
| Drive | Hydraulic motor | |
| Wire diameter | 16 mm | 0.63 inches |
| Swing range at min depth | 25.5 m | 83.6 ft |
| Swing range at max depth | 21.6 m | 70.8 ft |
| Type of winch | Drum winch | |
| Number of winches | 1 unit | |
| Wire pull | 40 kN | 8,992 lbs |
| Hauling speed | 0 – 20 m/min | 0 – 66 ft/min |
| Drive | Hydraulic motor | |
| Wire diameter | 16 mm | 0.63 inches |
| Total spud length | 12.5 m | 41 ft |
| Outer spud diameter | 355.6 mm | 14 inches |
| Total spud weight | 1,550 kg | 3,417 lbs |
| Hydraulic cylinder force | 65 kN | 14,612 lbs |
| Cylinder stroke | 1.25 m | 4.1 ft |
| Fuel type | Diesel fuel | |
| Tank capacity | 8,000 liters | 2,113 gal |
| Total area | 4.4 m² | 47.4 sq ft |
| Cooling | Ventilation fan (A/C optional) | |
| Lights | 2x exterior lights and 2x flood lights | |
| Additional | Screen wipers | |
| Instrumentations |
|
